How to join the community

Overview

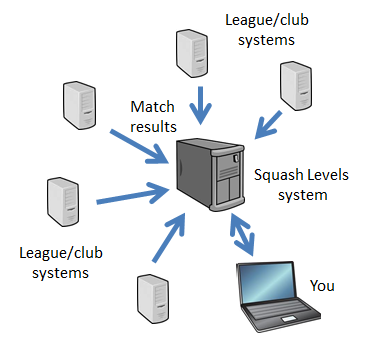

In order for SquashLevels to be a fully inclusive system it needs player details and match results from all players. We already have quite a few systems sending us results from events, leagues and boxes and are actively working with others to bring them on line as well.

This document outliines what it takes to get connected and is intended to be passed to the tournament and league system providers so that they can see what's involved and what they need to do to get connected.

There are good reasons to get connected:

• Your results will be on the system giving you a combined history of all your results wherever you played. That could be from a number of different leagues, county tournaments and even PSA events. They're all there together on one system.
• You will have a level and detailed, graphical level history. No other system calculates 'current level of ability' to this level of accuracy.
• You will be part of a very large community of like-minded squash players.
• You will be able to compare yourself with anyone else in the country who plays squash - and who also has results on the system. So you could travel to a different area and know which box to join or which team to sign up for or just who to have a good game with without all those painful 'how good are you?' conversations.
• Many federations use the participation data to justify their funding. You will be helping a greater cause!

It's surprisingly easy to get connected so please ask your webmaster to take a look at the spec below and get in touch with us. We'll have you on board in no time!

Automated upload of results

The is the first step for being able to pull your results from the system that collects them. That system (such as a league management or internal club boxes system) needs to provide a dedicated web page that has the most recent results (and any that have been updated recently) in CSV format as an API endpoint with a single parameter; days.

We normally pull these results every night (UK time) with the days paramater set to 3 so we have a moving window of three days. This allows for issues, missing feeds or whatever to occur without actually missing any results as we have three attempts at each day. Note the need to include updated results in the feed so, for instance, a match from two weeks ago that was updated yesterday is included in the feed and is therefore not missed.

The days parameter is very useful because it allows us to go back further without needing to contact the provider. reasons for this might be:

• We've had a query about a missing or incorrect result which we can access again very easily.
• We can pull historic results as part of our onboarding process.
• A problem with the feed or the data can be corrected with a re-read.
• The provider has additional data that they can pass to us so we just do a re-read to pull all that new data across.
• And many other cases...

SquashLevels reads these provider pages every night and pulls the results in. It's really very straighforward.

For authentication (to prevent access to results from other parties) we recommend either using some undocumented parameters or the use of some authentication fields in the header both of which can be checked by the provider. We don't recommend checking the IP address of our server because that can change.

Here's an example of a results CSV file located at: https://devs.squashlevels.com/cdn/squash/site/example-results.csv

source=badsquash
county=Avon
Date,Time,Player1,ID1,ESM1,Club1,Category1,Sex1,Player2,ID2,ESM2,Club2,Category2,Sex2,Results,Matchtype,FixtureID
2019-11-01,11:10:00,Giles Taylor,10891,,Redland Squash,Senior,Male,Sarah Trevelyan,1565,ES0123456,Redland Squash,Senior,Female,"5-9,9-5,9-7,9-5",Redland Green Boxes,33647770
2019-11-05,14:40:00,Paul Redmore,3769,ES0123456,Bradley Stoke Squash Club,Senior,Male,Ken Guy,2501,,Workout Harbourside,Senior,Male,"3-1",Workout Harbourside Lunch Time Boxes,33648769
2019-11-05,19:40:00,Viri Chauhan,7894,ES0123456,Redland Squash,Senior,Male,Lester Griffiths,9349,ES0123456,Redland Squash,Senior,Male,"11-15,10-15,15-12,8-15",Redland Green Boxes,33648790
2019-11-05,20:30:00,Cez Kocialkowski,11400,,Redland Squash,Senior,Male,Ross Rakauskas,12591,,Redland Squash,Senior,Male,"4-9,3-9,3-9",Redland Green Boxes,33648810
2019-11-05,20:50:00,Mark Woodard,3906,ES0123456,Redland Squash,Senior,Male,Steve Gale,10829,ES0123456,Gordano,Senior,Male,"17-15,16-18,11-15,7-15",Redland Green Boxes,33648830
2019-11-05,21:00:00,Phil Martin,9471,,Workout Harbourside,Senior,Male,Adam Sharpe,12990,,Workout Harbourside,Senior,Male,"17-15,14-16,10-15,15-12,13-15",Workout Harbourside Boxes,33648850
2019-11-05,21:10:00,Ross Rakauskas,12591,,Redland Squash,Senior,Male,Paul Matthews,6155,,Redland Squash,Senior,Male,"7-9,9-4,9-3,9-1",Redland Green Boxes,33648870
2019-11-06,05:50:00,Martin Evans,10647,,Westbury David Lloyd,Senior,Male,Anthony Fairweather,10475,,Westbury David Lloyd,Senior,Male,"1-9,2-9,3-9,9-5",Westbury David Lloyd Boxes,33648890
2019-11-06,08:10:00,Jean Paul Thorogood,12899,,Workout Harbourside,Senior,Male,Andy Chesters,13191,,Workout Harbourside,Senior,Male,"12-15,15-12,7-15,15-13,10-15",Workout Harbourside Boxes,33648910
2019-11-06,19:00:00,Dave Allman,4216,ES0123456,Redland Squash,Senior,Male,Emma Chorley,4624,ES0123456,David Lloyd,Senior,Female,"11-1,11-2,11-5",Mixed Autumn 2019-20,33512650
2019-11-06,19:00:00,Tom Gogarty,11685,ES0123456,Redland Squash,Senior,Male,Simon Hygate,76,ES0123456,David Lloyd,Senior,Male,"8-11,11-9,11-7,11-3",Mixed Autumn 2019-20,33512651
2019-11-06,19:00:00,Mike Nichols,456,ES0123456,Redland Squash,Senior,Male,Jason Mathias,73,ES0123456,David Lloyd,Senior,Male,"11-6,11-5,11-7",Mixed Autumn 2019-20,33512652
2019-11-06,19:00:00,Phil Rea,8668,ES0123456,Redland Squash,Senior,Male,Ross Morrell,608,ES0123456,David Lloyd,Senior,Male,"11-6,13-11,6-11,17-15",Mixed Autumn 2019-20,33512653

Each row represents a single match result between two players. Each column contains the data for each of the players, the result and the type of match. If data about a player (such as their club) is received then that player's information on the system can be updated. That way, player data can be maintained by the source system without individual players having to maintain it themselves.

We can receive and use a lot of data about the match, the players and the result with all the available fields listed below. Most of the fields are optional but the more data that is provided the better the player's experience will be. A fiew fields are mandatory and these are marked with a '*' below. For GDPR compliance, please don't send us data that we can't use.

The players are numbered 1 or 2 for singles or _A1, _A2, _B1, _B2 for doubles. E.g. the club heading for the first player would be Club1 for singles or Club_A1 for doubles. In the list below we are showing X where X is the player number.

The column headers are case insensitive. They are shown here capitalised for readability.

• Date * - Date of the match. E.g. 2014-12-19. Month in the middle please.
• Time - Time of the match. E.g. 19:30:00. Defaults to 19:00:00.
• PlayerX * - Name of the player. E.g. John Smith. Name will be auto-capitalised.
• IDX * - ID of the player on the source system. E.g. 326. Used to ensure results go to correct player.
• PrivacyX - [true|false] If the player's name should be withheld even though we receive and process their result.
• ClubX - The player's club. E.g. David Lloyd Grimsby. New clubs will be added as they are encountered.
• RegionX - The player's region. This could be their county, district, province etc. See below for our use of 'geography'.E.g. Avon. Will be auto-abbreviated to ES standard county names.
• CountryX - Three letter country code of the club/region above. This is for locating the club. E.g. ENG, NLD.
• PlayerCountryX - The player's three letter country code. This can be different to the country they are playing in.- E.g. AUS.
• CategoryX - The player's current age group. E.g. O45. Will update if older but not younger!
• GenderX - Male or female. We do not currently support other genders. Waiting for international guidance on this one.
• DoBX - The player's date of birth. E.g 1983-04-20. Note this is stored encrypted and not accessible by anyone. Is will auto-generate and override current age group.
• ClubAddressX - Address of the player's club for auto-lookup of club location.
• LatX - Latitude of the player's club for auto-lookup of club location.
• LngX - Longitude of the player's club for auto-lookup of club location.
• Player... - Same fields as above but for the other players.
• Results * - The score line from the match. Just pairs of numbers but go down to the detail you have please. More detail here gives us more accuracy. Please see notes below on results.
• Matchtype * - Type of match in text. E.g. Surrey Mens League 2018/19. The name may be parsed, abbreviated and re-ordered to maintain consistency across the system such as putting all dates at the end. See notes below on how we use match type.
• Weight - The weight of the match. From 0.5 (friendly) through to 1.0 (tournament). Directly dialled into the damping. Clubs are recorded for the match if weight < 0.8.
• Sanctioned - If the match is for a sanctioned event, include the sanctioning body here. E.g. ES, SBN.
• Exclude - [true|false] Record the match but exclude it from the level processing. Player levels will not be affected. This might be used for recording injuries.
• FixtureID - ID of the match/fixture ID on the source system. Needs to be unique for every match and is used to identify a match that's being updated rather than a new one. If you use the same fixture ID for all the strings then multiply by 10 and add the string number to make them unique. E.g. 493074. It is very useful to be sure that an updated match is really the same match - otherwise we have to go by a comparison of the other values (players, date/time, scoreline etc.) in the match.

We can also receive federation membership numbers and IDs. These are discussed and agreed with the federations.

Scoring systems - based on the supported sport, we can auto-recognise the scoring system used. We like to go down one level of detail as this really improves the dynamic accuracy of the level calculations. E.g. for squash, "11-7, 11-9, 13-11" is much better than "3-1". For Padel/Tennis, "6-4, 3-6, 5-7" is much better than "1-2" though we can use these higher level scores if that is all that is available.

Geography - We use three tiers of geography if available; country, region and club for the player's club. This effectively tells us where the player is playing and allows us to cut the rankings by these fields so the use of region is country speific. We support counties, districts, states, principalities, etc., etc. Note this is different to the player's country as that is personal to the player.

Match types - We use the match type to determine the weighting of the match; club matches are weighted less than tournaments for instance. We also use match types to group players into pools for the calibration. I.e. players in the box leagues at a club would in one pool whereas everyone in a regional tournament would be in another. With this in mind we like to set the match type at that sort of resolution. Examples are:

• Club matches - e.g. Redland Internal Box Leagues.
• League matches - e.g. Surrey Mens League 2023/24.
• Tournament matches - e.g. Redrow Open 2024.

These are two low or two high resolution for a match type:

• Padel match.
• Redrow Open 2024 round 1 court 6

Ideally the source system can provide a good deal of this information but SquashLevels will assume players are senior, males with no club, region or country. MatchtypeID and FixtureID are also optional but very useful for connecting our respective systems. The absolute minimum fields are; Date, PlayerX, IDX, Results, Matchtype but that does leave it to the player to fill out and maintain the rest manually on the system.

The source system IDs are mapped to their SquashLevels ID and these mappings are maintained for all source systems. This is done automatically if they have the same name and the same region otherwise they are left as separate players to be merged later. If the federation membership number is included in the player results then that will be used to match up possible duplicate players. All source systems are allocated a name when they link up.

Note matches can also be posted asychronously using the SquashLevels API. This allows for results to be processed immediately and updated levels returned but please be aware we can only do a sub-set of the processing on a single result and the levels will almost certainly be updated (a little) during the nightly processing. Matches from events are also often received out of order which will also affect levels. Only after the nightly processing can we really say what a player's level is.

Please see the section below for details on this API endpoint call.

Automated upload of tournament positions

SquashLevels is predominently all about receiving match results and calculating levels based on those. We also support tournament based rankings where the information we need is focused on the final position that a player reached in each event. We pull the results in the same way (see results upload above) but in this case we need the following fields in the returned CSV.

• Source - Source of the PrimaryID provided later. E.g. SPIN.
• EventName - Name of the event. Needs to match the event name that comes in with the player results.
• StartDate - First day of the event. E.g. 2023-05-23.
• EndDate - Last day of the event. E.g. 2023-05-26.
• Level - Level of the event - one of the standard levels from Bronze to Platinum.
• DrawSize - The number of players in the draw. E.g. 37.
• Draw - this is the name of the draw so could be based on divisions or age groups. This is used as a label in the rankings (as the players will be referencing it) rather than for any points calculations. E.g. U17 boys.
• AgeGroup - Age group entered by the player. I.e. use U17 if an U15 enters an U17 draw. This is the one we use to look up the points awarded based on final position. Not shown in the rankings but is critical to them. If using divisions that represent age group equivalents, please provide the age group here and put the division name (e.g. Division 4) in the Draw field above.
• PlayerName - The name of the player. Only used to validate the player ID.
• PrimaryID - The ID of the player used by the source system. More reliable than federation IDs which can be a but wayward. You don't need to know our IDs.
• SPIN - Optional column if the PrimaryID is not SPIN but you have the SPIN of the players as a secondary ID.
• ESF - Optional column if the PrimaryID is not ESF but you have the SPIN of the players as a secondary ID.
• County - County of the player. E.g. Avon. Will be auto-abbreviated to ES standard county names.
• Country - Country of the player. This can be long form of country or three letter abbreviation. E.g. England or ENG.
• Gender - Male/Female.
• DoB - E.g. 2008-04-20.
• Position - Finishing position of the player in the event. E.g. 7.

Inter-linking the community systems

So that the systems form a community for the players (and not just a set of isolated systems) there should be two way links between the source systems and SquashLevels. This is part of the requirements of getting connected.

Links from SquashLevels to the source systems

These links provide single click access back to the source systems allowing the players fast access to the pages that are of most interest and specific to them. If you have a page you'd like us to link to then please let us know.

• From the player profile page to the equivalent source system page.
• From the Community page to the home page of the source system.
• From the Community page to a page of the source system advertising it's features in detail along with contact numbers and anything else you'd like to have such as discount codes - it's your page.
• The community page will also list and summarise the features of all the connected source systems (you'll need to give us the content!).

By default, players are referenced by their source system ID so it is easy to create links from the source system.

If you have a logo URL we would like to use it!

Links from the source systems to SquashLevels

These links provide single click access to SquashLevels pages of most interest to the players such as rankings and player history. Note that any links can be used but page content will depend on whether the player has previously logged on to SquashLevels. If so then then full page content will be available otherwise it will be slightly reduced. This feature relies on the player using cookies.

These links work well from the source system home page.

• SquashLevels home page. Use https://app.devs.squashlevels.com.
• County or league rankings. Any ranking list available on SquashLevels can be linked to using your source system name as a reference. Use https://app.devs.squashlevels.com/players?all&source=<source name>&list=county. Click here for example.

Please use our full logo (https://devs.squashlevels.com/cdn/squash/site/logo-combi-black.png) with your links.

If you're short of space you can use just our logo icon (https://devs.squashlevels.com/cdn/squash/site/logo-icon).

These links work well from the source system player detail page.

• Player history. Use https://app.devs.squashlevels.com/player_detail?player=<source player ID>&source=<source name>.
  Click here for example.
• Match detail. Use https://app.devs.squashlevels.com/match_detail?match=<source match ID>&source=<source name>.
  Click here for example.
• Club rankings with player highlighted. Use https://app.devs.squashlevels.com/players?all&player=<source player ID>&source=<source name>&list=club.
  Click here for example. Non members will not have their position highlighted.
• County rankings with player highlighted. Use https://app.devs.squashlevels.com/players?all&player=<source player ID>&source=<source name>&list=county.
  Click here for example. Non members will not have their position highlighted
• Head to head prediction. This is particularly nice to use from your tournament page when there is a match-up between two players. This head to head comparison will show both player's histories on a single chart and give a prediction on how the results is expected to pan out. Use https://app.devs.squashlevels.com/player_detail?source=<source name>&player=<source player ID&h2hid=<source opponent ID>&show=last24m. Note this is a feature of SquashLevels premium members.
  Click here for example.

Access to SquashLevels data using the REST API

Many of the user readable web pages on SquashLevels can be returned in JSON format for system consumption by adding the parameter format=json. All parameters are passed in using the GET method - which is the equivalent of typing in the URL on your browser. E.g. https://app.devs.squashlevels.com/players?all&source=<source name>&list=county&format=json. Click here for an example.

The data is returned as a JSON list with value:ID pairs for each piece of data. This allows source systems to include the SquashLevels ranking lists directly on their own pages.

SL-client parameter

If you want to make use of these endpoints from your server (which is the expected usage model) then you'll need to add the SL-clent parameter. This allows you to get through our crawler filter and also we can track your use of the API. Please ask and we can provide you with a SL client ID.

JSON structure

All returned JSON structures use the following format:

The message text is mainly to use if something goes wrong - it will tell you what. The user text message is to show the user. This might be generic news such as system downtime planned (not that we ever take it down) or, more likely, that the feature they're asking for needs them to be logged on as a member. Mostly, this user message will be blank. The data that was requested will be returned in the 'data' field.

Player listings (rankings)

The players page is used for player listings for both the web page and JSON output. The listings are controlled using the following parameters:

• all - No value needed. Turn everything on (all filters off). Shorthand for setting all the other parameters to 'all'.
• show - Use [last10/last6m/last12m/last24m/all]. The time period to search over. Need to be a member to see more than 12 months.
• club - Use clubid as defined by SquashLevels. See below for access to the clubids.
• player - Use playerid as defined by SquashLevels to list a single player only. If source is set then use the playerid of the source system. If list is set as well then defer to list description below instead.
• county - Use countyid as defined by SquashLevels. See below for access to the countyids.
• country - Use countryid as defined by SquashLevels.
• matchtype - Use matchtypeid as defined by SquashLevels.
• playertype - Use [male/female/all].
• playercat - Use [U13/U17/.../O35/O45/.../Senior/Pro/etc.]. See filter pull-downs on web page for full list.
• events - Minimum number of events played.
• search - For searching by player name. Use name snippets such as jon+sm+th
• min - Minimum level to show
• max - Maximum level to show - use these to show players within a range of levels
• start - Start position to show
• asof - Max dateint (epoch time) of their last match to show
• min_dateint - Min dateint (epoch time) of their last match to show
• perpage - Number of players per page to show - use these to step through multiple pages of player listings
• highlight - Start the listing 10 players before the requested playerID. For highlighting the player in a ranking list. Members only.
• grade - [0/1]. Use to include the player's grade column or not. Default off. Grade is specific to Avon events.
• confidence - [0/1]. Use to include the level confidence column or not. Default off.
• limit_confidence - [0/1]. Use to include the level confidence column or not. Default on.
• source - Limit the results to those from your system.
• sourceid - As above but use the ID rather than name.
• source_playerid - When source is set, you can use this to identify a player from your system using your ID. Same as using player (above) but offered for consistency.
• list - Use with source and player. Set to club to see the player's club listing or county to see the player's county listing. Supports the single click player rankings links from the source system.
• source_matchtypeid - Use the matchtypeid from the source system. Source needs to be set for this to be used and the value must have been passed in with the results.
• format - Use json for JSON output. Defaults to web output.

The defaults are set to list all players for the last 12 months with no other restrictions but they can be overridden by cookies which are set to the filters used for the last player listings selected. This allows users to set up the player listings that they want to see and then that's what they'll always see if they don't change it.

Access to club and county IDs

It may help to be able to list the full set of club and county IDs used by the system. They are dynamically added to but once defined, not normally changed (unless duplicated clubs are merged). Use the following page for JSON output:

Finding out processing state and results upload history

If you intend to cache any data locally to your own system, you should be aware that SquashLevels reprocesses its levels over night and may have made changes during that process. You can use the URL below to return a JSON structure that will tell you what the processing state currently is and when it last changed state. The state is shown as 'completed' at the end of processing. You can use this to determine when to refresh your cached data.

This URL also returns a summary of the uploaded results for the last 7 days. You will find a structure showing the upload count for each source/matchtype/date combination for the last 7 days. You should be able to find out how many results SquashLevels has received from your system using this structure.

Access to advanced SquashLevels features using the REST API - approved users only

This section is available to approved users only. You should only be able to see it if you have logged on with the provided credentials but please note that all accesses are tracked and unapproved access and/or usage of this imformation will be followed up.

Locks, keys and app IDs

Some of the data is restricted and needs a key to access it. This is a time based key to prevent web spiders or other forms of mal-intent from accessing private data or functionality that can modify the system data. Please do not forward this information on to unapproved parties!

The time-based key takes the form key=xxxxx where xxxxx is a numeric key. It is derived by taking the unix time now, multiplying by 100, square rooting that and subtracting 100. I.e.

Round to the nearest integer. This has the advantage of not looking like anything familiar (such as a unix time stamp) and it also gives a range of a couple hours either side so that if the clocks are mis-aligned the key will still work.

You can check your key using the following URL.

All privilaged users - such as the apps - need to use an app ID to identify themselves. This helps track usage, stops the system thinking you're a web spider and also allows the system to behave differently for the different apps and even different app versions. We will agree an app ID to use for your app such as 'SL1.6'. For this example, please append every URL call with a parameter of the form appid=SL1.6.

There is also a generic client equivalent for those clients that are not apps. Please use a parameter of the form SL-client=XYZ1.0. Again, we will need to agree an appropriate client ID.

If the key is needed and not provided or invalid, the request will return the 'invalid comms key' error.

Logging in

The system recognises a logged on user from their session data and, if that doesn't exist, then from their BADSQUASH_PERSIST cookie. The following URL will log a user on and return their BADSQUASH_PERSIST cookie value:

Find out which systems are supported by this code base

A single code base supports a number of league systems and the main ranking system so to find out what is supported and get a list use the following URL for any of the systems - they will all return the same data.

Data returned includes the name of the system, the URL to reference it by, the type of system (league or ranking) and the location of a logo that can be used for that system.

Access to player history

The same information that is available in HTML is pretty much also available in JSON but using the format=json parameter.

Note that the data returned is split into the same main sections as for the web version:

• Attributes - Name, clubs, ESR number etc.
• Statistics - Matches won/lost etc.
• Match results - Details of each match in the player's history.

Setting a player's device ID

This associates a player with a particular device which is useful for locking functionality such as scoring a match to a particular device. E.g. to add the deviceid 20013feab6bcc730d to your log-on use the following:

The user does need to be logged on so that the system knows who the device ID needs to be associated with. If the functionality is not concerned about device ID then this will have no effect but if it does, it will allow that functionality to be used once the device ID has been set.

This is used in conjunction with posting match results to the staging area which is explained below.

Looking up players

This allows you to dynamically enter a player's name and have suggestions dynamically offered which is what happens with the 'Find' page on the main site. Use the following URL:

This will give a list of player names that match the text entered along with the player attributes (player ID, club, county, country, gender, age groups etc.). A maximum of 50 names are returned.

Full set of parameters and options

Endpoint: https://app.devs.squashlevels.com/api

Parameters:

• action=find - find a player
• name=<Player Name> - This is the name to check against or use to add a new player with
• source=<source name> - Use the source name we agreed for you
• playerid=<source player ID> - Your source ID for the player you're looking for
• emailhash=<MD5 of their email address>
• mindateint=<Epoch time> - The minimum time of their most recent match (to filter out old players)
• withheld=[1|0] - Whether to include players that have withheld their details (please check with us before using)
• stats=[0|1]<If you want to include player stats in the response>
• matches=<Number of the most recent matches to include>
• tests=<Number of the most recent test results to include>
• tests_pb=<Number of the most recent PB test results to include>
• trophies=[0|1]<If you want to include player trophies in the response>
• SL-client=<your SL client ID>
• format=json - needed for JSON format

How to use

• Both the source player ID and email hash look-up are looking for a single player though they might find one player each if something's out of whack. In this case they both find the same player. If it finds a player with the correct email hash and they're not mapped to your source ID then that mapping is added.
• If no player is found at all and you have a sensible looking name, source IDs and the add parameter then it will add the player to SL and create a new player profile for them - not a user profile. This new profile will be mapped to your IDs. This is the only time player name is used. If a player is added or newly mapped then the status will say 'New player added'.

Use mindateint and withheld as additional filters. Please check with us before using withheld=1 as these players have specifically asked to be buried.

Adding a player using source player ID

If you can't find the player you're looking for then you can add them. We only need their name and source ID to at least create a player profile for them. We may inclue more player attributes in future though the player can either update those directly on SquashLevels themselves or they will be updated as results come in for them.

Endpoint: https://app.devs.squashlevels.com/api

Parameters:

• action=add_player
• source=<source name> - Use the source name we agreed for you
• source_playerid=<source player ID> - Your source ID for the player
• name=<Player name>
• playertype=[male|female] - defult male if omitted
• club=<Player's club> - Blank if omitted. Not implemented yet.
• county=<Player's county> - or region. Blank if omitted. Not implemented yet.
• country=<Player's country> - Blank if omitted. Not implemented yet.
• SL-client=<your SL client ID> - Blank if omitted. Not implemented yet.

You'll get back:

• status=[good|bad]
• playerid=<SquashLevels player ID>
• message=<Our message to you on how it went>

If we already have a player mapped to your source/source_playerid then we return good, the player ID and name we have for them. We won't add a new player in this case so you should check if it's the same name... We can't have two players mapped to the same source ID.

Adding a source player ID link

We use a mapping from the player ID on the source system to our own player ID to know who the players are when the results come in. We also use source player mappings for things like membership numbers for the various federations.

You can use an API call to add a mapping from your source player ID to our player ID for a source.

Endpoint: https://app.devs.squashlevels.com/api

Parameters:

• action=add_source_link
• source=<source name> - Use the source name we agreed for you
• source_playerid=<source player ID> - Your source ID for the player
• playerid=<SquashLevels player ID> - Our player ID for the player
• SL-client=<your SL client ID>

Removing a source player ID link

We use a mapping from the player ID on the source system to our own player ID to know who the players are when the results come in. We also use source player mappings for things like membership numbers for the various federations.

You can use an API call to remove such a mapping from your source player ID to our player ID for a source.

Endpoint: https://app.devs.squashlevels.com/api

Parameters:

• action=remove_source_link
• source=<source name> - Use the source name we agreed for you
• source_playerid=<source player ID> - Your source ID for the player
• SL-client=<your SL client ID>

You don't need to provide our player ID as we can look it up. We will let you know if we actually found the player to unlink in the response.

Viewing extended ranking lists without being logged in

This is intended for access by external systems such as the apps. If you want to pull a large number of players at once then you can use the key rather than being logged in. E.g. Use the following URL:

This will give the rankings of 1000 players from a single call.

Getting the list of fixtures

The league process is centered around fixtures and using the following URL you can get hold of the complete set of seasons, leagues, divisions, clubs and teams along with IDs and match dates for the current leagues. It returns a lot of data (around 90 KB) but it's very useful to have all this to hand.

Getting the fixtures and results for a specific team

This is a way of getting the data returned from the table in the top left of the team page. Includes captain's details, the list of fixtures, opponents, results, availability etc. It returns the data for the most recent division that the team is playing in. Use the normal team page but add 'format=json' to the URL.

Posting match results to the staging area

This is specific to the league system and is for staging the results as they come in which allows external viewing of the results as the match is progressing and also both captains can see the results before agreeing on them and sending them off to the system as the official record. The official record is where the results go when entered manually.

The following URL shows how to post a single result from string 2 for a specific match ID. Note that it includes the device ID referred to above to ensure that no-one else can post a result for the same match.

Use player ID if you can but you can add a new player using the name as shown in the example. Note the format of the scores. This is how they are stored and you can post at any time so you can post the results for a match that's currently in progress.

You can include the results from multiple strings by including them in the URL. Results are additive so if you post a string 1 result and there's a string 2 result already recorded then both will be preent in the staging area.

Accessing match results from the staging area

To show intermediate results or to show the captains the results from the staging area use the following URL:

Posting a single match straight in to the DB

A match can be sent to us via a POST to https://app.devs.squashlevels.com/api with the following example parameters. This example is just a sub-set of the available parameters - it's good if you can include club and region information as well - but you can get away with the list below. See the definition of the CSV format above for the full set of parameters that we can receive.

Note (see the examples below) that player spcific values can be passed in using fieldX (e.g. club_A1=xxxxx) or you can pass them in as a value to be used for all players (e.g. club=xxxx). This applies to club, region and country only.

We accept the same fields as per the CSV format input above

Note that you can also use GET. POST is preferred as the parameters are not so visible but you can use GET to get it working and then switch to POST afterwards.

    action=add_result                  // the action parameter to use with the info URL
    key=380455                         // this is the time based key check (see above)
    datetime=2015-03-09 19:00:00
    nameX=James Barlow                 // Details for the players
    idX=1394                           // This is the source ID, not the SquashLevels ID
    clubX=Redland                      // This is the club for the specific player
    .. Values for the other player(s) here
    country=ENG                        // Club/region/country like this applies to all players in this match
    scores=6-4|7-5|6-3                 // Pairs of numbers is all that's needed
    matchtype=Redland Open 2024        // Use an existing match type or a request a new one to be auto-added
    fixtureid=4386                     // A unique integer ID to identify the source match
    source_name=mysource               // We need a source name to map the IDs to. Please agree with us first.
    process                            // Force the levels to be calculated now. Leave parameter out otherwise.
    SL-client=myclient1.0              // The agreed Client ID

Here's an example of what comes back. This example is singles, doubles results will return with four player updates. Note the use of homeplayer, awayplayer (and then homeplayer2 and awayplayer2 for doubles). This is somewhat historic and we might update to support player_A1 etc., in future.

  {
    "action":"Updated[P]",
    "matchid":"3929434",
    "timing":"Look up\/add players: 0.06 Look up match: 0.005 Process match: 0.003 Recalculate levels: 0.006 Initial levels: 0.001 Add match total: 0.077 ",
    "issues":"",
    "homeplayerid":"591",
    "awayplayerid":"210879",
    "valid":1,
    "title":"Richard Bickers v Nev Saunders (Mon 09 Mar 2015)",
    "duplicates":[
    ],
    "homeplayer_levels":{
    "playerid":"591",
    "matchid":"3929434",
    "matchtypeid":"7085",
    "clubid":"1497",
    "levelbefore":"1034",
    "levelafter":"997",
    "dampedlevel":"-1",
    "position":"-1",
    "leaguetypeid":"0",
    "opponentid":"210879",
    "ratio":"0.72",
    "confidence":"-0.133",
    "dateint":"1425927600",
    "stale":"0",
    "backfill_order":"292"
    },
    "awayplayer_levels":{
    "playerid":"210879",
    "matchid":"3929434",
    "matchtypeid":"7085",
    "clubid":"1497",
    "levelbefore":"1106",
    "levelafter":"1150",
    "dampedlevel":"-1",
    "position":"-1",
    "leaguetypeid":"0",
    "opponentid":"591",
    "ratio":"1.4",
    "confidence":"-0.15",
    "dateint":"1425927600",
    "stale":"0",
    "backfill_order":"88"
    }
  }
 }

Uploading a photo for a player

The photos are displayed at the top of the player's history page (not implemented yet). Use the following URL to upload a photo to the system. Note there is no processing done on the photo such as resizing so avoid large photo file sizes or it will take too long to render on the browser (and consume file space).

It's done via a POST to info with the following example parameters:

    action=upload_photo                 // the action parameter to use with the info URL
    key=380455                          // this is the time based key check
    playerid=591                        // this is the player who's photo it is
    @filename                           // this is the filename that contains the photo. Note the '@' for file transfer.

The file will come over with information including the filename so the system can extract the .png or .jpg postfix from it. Octet streams are fine to get the binary data across so no need to say it's image/png for instance.

You'll get a response along these lines:

{"status":"good",
 "message":"Photo uploaded",
 "data":{"name":"Richard.jpg",
         "type":"application\/octet-stream",
         "error":0,
         "size":116293,
         "location":"photos\/spa_playerid_591.jpg",
         "player_name":"Richard Bickers"},
 "user_message":""}

You'll see the filename returned along with its size but also the location where it's being stored on the system. You can also work out the filename from the playerid fairly easily instead if you prefer. See photo download section below.

The player info from player_detail also includes the location of the photo so if you pull that you'll know if there's a photo or not for any player.

Extracting a photo for a player

Extraction is as simple as accessing the photo directly from the website e.g.

If there isn't a photo you'll get 'page not found' or if you check the player info (see above) first to get the file location then you can see if there's a photo or not.
